Embedded GPS Module

RoHs Compliant

The WI-GPS-XX Embedded GPS Module delivers proven performance and quality for a new generation of position enabled products, allowing OEMs to quickly and easily add GPS support for virtually any application.

Powered by the 12-Channel Trimble Copernicus II receiver, the Embedded GPS Module features extremely fast startup times and high performance in foliage canopy and urban canyon environments. The GPS receiver can autonomously aquire satellite signals and quickly generate reliable time and position fixes in extremely challenging environments and under poor signal conditions.

The module’s small size and low power usage also make the WI-GPS-XX an excellent candidate for mobile applications and those requiring low power.

The Embedded GPS Module provides up to three interfaces to the host CPU, allowing OEMs to choose between USB, RS232, or UART. On-board status LEDs provide visual indicators for USB Activity, Antenna Connection, and the GPS Pulse Per Second (PPS) signal. A terminal block also provides access to the PPS signal allowing easy system integration of GPS Timing. Furthermore, the module can be configured to receive power through the USB connector or an external system power source via a terminal block.

The WI-GPS-XX can be purchased Module only, with a Magnetic-Mount Antenna, a Compact Embedded Antenna, or a Bulkhead Antenna. A Development kit is also available allowing OEMs to quickly evaluate the product and its features.

Embedded GPS Module


PDF FileWI-GPS-XX Data Sheet

Log in Required to view additional files

Please sign into your account using the login link located at the top right corner of this page to view the User Manual and additional Documentation / Software.

If you do not have a username and password, you can Create an Account here.
There is no FAQ for this product

All prices indicated on this website are retail catalog prices. If you would like to make a wholesale or large quantity purchase, please request a quote by adding the desired item(s) to the shopping cart and selecting "I want to Request a Quote" during checkout.

Note: Items marked with (*) are wholesale only. A quote is required and minimums may apply.

Below Ordering Information is for the Module Only. Development Kit, Cable Sets, and Accessories (if available) can be found from the Related Products Section.

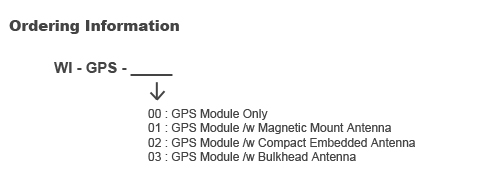

Ordering Information:
Ordering Information

Antenna Option

Select the Type of Antenna

GPS Module Only
WI-GPS -00
GPS Module /w Magnetic Mount Antenna [Add $15.00]
WI-GPS -01
GPS Module /w Embedded Antenna (Discontinued) [Subtract $86.00]
WI-GPS -02
GPS Module /w Bulkhead Antenna (avail. for Back Order) [Add $56.00]
WI-GPS -03

OEM Packaging
Base Price: $0.00 Configured Price: $86.00
As configured Part Number:
WI-GPS -00
  • GPS Module Only
  • OEM Packaging
