Embedded E-Paper Display Module

RoHs Compliant


16-bit PIC24F

10-bit ADC @500ksps
In/Out Compare, PWM
59 Digital I/O lines

16KB Internal SRAM
256KB Internal Flash

Operating Temperature:

Module Only:
-40oC to +85oC

Module w/ Display:
0oC to +50oC

16 MIPS @32MHz

Low Power:
~20mA runtime
~100nA sleep mode

Mounting Holes:
4-40 size
plated, grounded

Supported E-Paper Displays:

1.44", 2.00", 2.70" v110 (Vizplex), v231 Aurora Mb

Programming Requirements:

- Tag Connect Cable TC2030-MCP-NL
- Tag Connect Cable Clip TC2030-CLIP (optional)

And one of the following:
- Microchip ICD3 Programmer/Debugger
- Microchip PicKit3 and RJ-11 to ICSP Adapter

(These items are not sold by Saiko Systems and must
be ordered from respective manufacturers/distributors)

The LCD-EPDP24 is an Embedded LCD module featuring E-Paper Panels from Pervasive Displays, similar to those used in the Kindle and other e-Readers. Designed for low power applications, the E-Paper displays mimic the appearance of ordinary ink on paper,making them more comfortable to read and giving the surface a wider viewing angle. Furthermore, E-Paper uses only minimal power to change the image on screen, while using no power what-so-ever to maintain a static image.

Powered by Microchip’s 16-bit PIC24F microcontroller, the module offers designers a host of features including a 10-bit ADC @ 500ksps, 59 Digital I/O, UART, I2C, SPI, Timers / Counters, USB 2.0 Full Speed (functional as a Host or Client), and much more. Furthermore, an additional 256K SPI SRAM and a 256K SPI EEPROM provide ample storage for display centric human interactive applications.

Using the free MPLAB X IDE and vast resources of software libraries and example software available, developers can bring their projects to life with ease and a quick time to market.

The small form factor, low power requirements, and vast feature set make it ideal for control, display, and human interaction applications which are limited in space, but require reliability and a high CPU processing ability.

The LCD-EPDP24 can be purchased Module only, or populated with the display of your choice.

Embedded E-Paper Display Module


PDF File LCD-EPDP24-XX Data Sheet

Log in Required to view additional files

Please sign into your account using the login link located at the top right corner of this page to view the User Manual and additional Documentation / Software.

If you do not have a username and password, you can Create an Account here.
There is no FAQ for this product

All prices indicated on this website are retail catalog prices. If you would like to make a wholesale or large quantity purchase, please request a quote by adding the desired item(s) to the shopping cart and selecting "I want to Request a Quote" during checkout.

Note: Items marked with (*) are wholesale only. A quote is required and minimums may apply.

Below Ordering Information is for the Module Only. Development Kit, Cable Sets, and Accessories (if available) can be found from the Related Products Section.

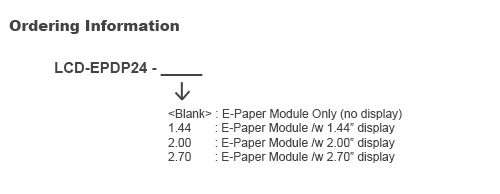

Ordering Information:
Ordering Information

E-Paper Display Option

Modules do not include cables. Please check the "Related Products" section for relevant cables.

E-Paper Module only (no display)
E-Paper Module with 1.44" display [Add $11.00]
E-Paper Module with 2.00" display [Add $15.00]
E-Paper Module with 2.70" display [Add $25.00]

Retail Packaging With UPC and EAN-13 barcodes, ready to be placed on retail selves are also available. If you require a wholesale purchase with retail packaging please email us for a quote.

OEM Packaging
Base Price: $0.00 Configured Price: $70.00
As configured Part Number:
  • E-Paper Module only (no display)
  • OEM Packaging
